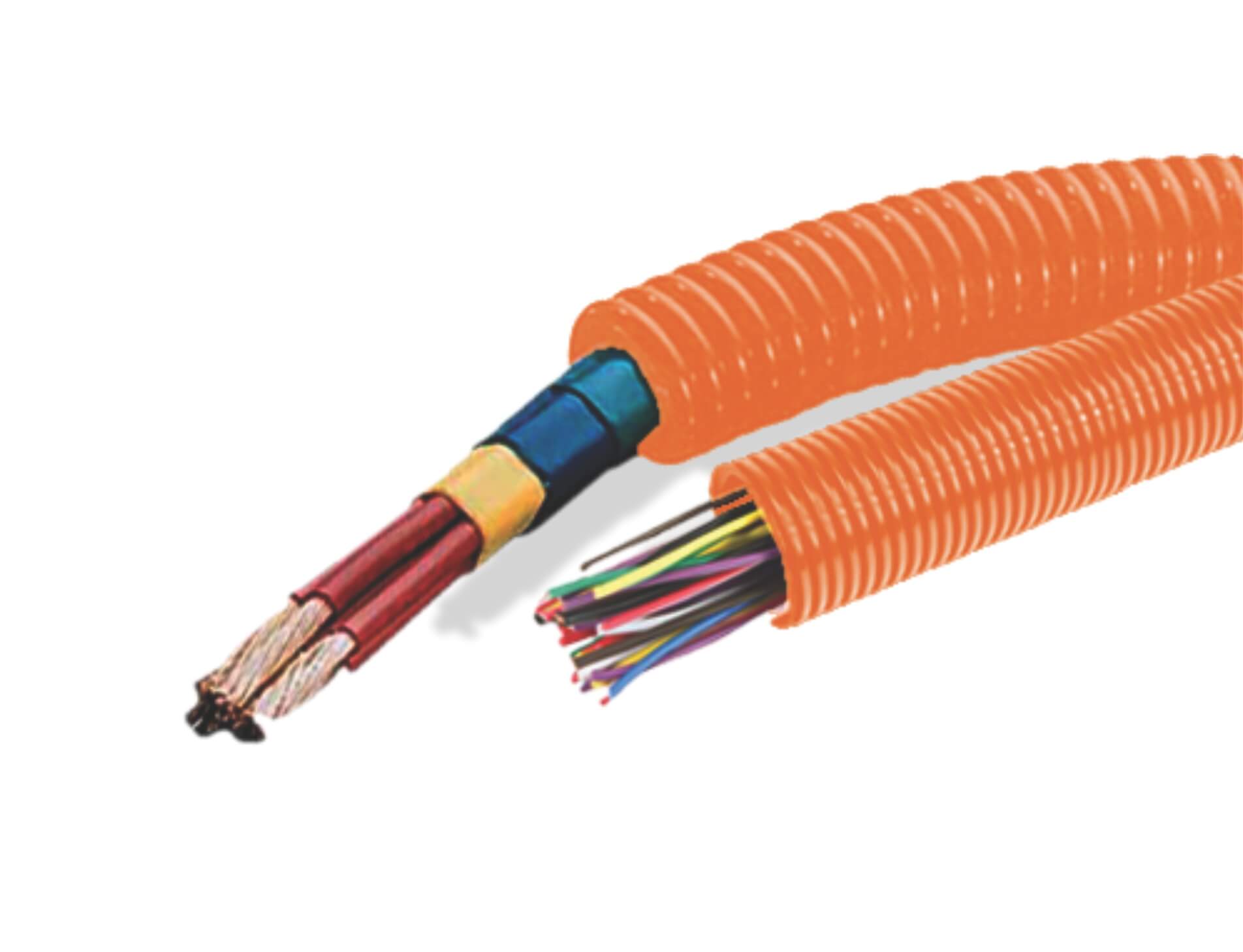

DWC Cable Duct Pipes 40 MM Manufacturer Stockist Exporter
We are manufacturers, stockist and exporters of DWC Cable Duct Pipes 40 MM in Mumbai.
Synergy Engineering Solution is a reputed manufacturer, stockist, and exporter of top-grade DWC Cable Duct Pipes 40 MM, designed specifically for the secure and efficient conduit of electrical and communication cables. These Double Wall Corrugated (DWC) Pipes are manufactured from High-Density Polyethylene (HDPE) and are widely used in underground and over-ground cable management systems. With an outer diameter of 40 mm, these pipes are ideal for low-voltage power, data transmission, and fiber optic installations, especially in residential, telecom, and smart city projects.
The 40 mm DWC cable duct pipes feature a corrugated outer wall for enhanced mechanical strength and a smooth inner surface that facilitates easy cable pulling with minimal friction. This dual-wall construction provides superior durability and resistance to external loads, ensuring long-term performance even under traffic loads or harsh environmental conditions. These pipes are typically available in orange or black colors, in accordance with standard color-coding for electrical conduits.
Manufactured using cutting-edge co-extrusion technology, Synergy ensures that every 40 mm DWC pipe maintains consistent wall thickness, flexibility, and ring stiffness. These pipes comply with national and international specifications such as IS 14930 (Part II) and IEC 61386, making them suitable for deployment in both domestic and international markets. Each pipe is supplied in standard coiled lengths of 30 to 50 meters (custom options available), and is compatible with snap-fit couplers and EPDM rubber gaskets for quick, secure, and water-tight connections.
As a dedicated stockist, Synergy Engineering Solution maintains ready-to-ship stocks of 40 mm DWC cable duct pipes along with associated accessories like bends, junction boxes, end caps, and reducers to support turnkey projects. The company’s agile logistics and export capability make it a reliable supplier for urgent project demands. All pipes are flame-retardant, UV stabilized, and non-conductive, offering enhanced electrical safety and installation longevity.
Our Other Valuable Products
Synergy exports its 40 mm DWC cable duct pipes to several key markets, including Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, USA, Canada, and across Africa. The company ensures smooth and compliant global shipping with full technical documentation, Material Test Certificates (MTCs), customized labeling, and third-party inspection approvals as required by international clients and contractors.
Thanks to the HDPE base material, these pipes are resistant to chemical corrosion, environmental stress cracking, and abrasion. They are lightweight, making them easy to transport and install, even in congested or remote areas. Their lifespan exceeds 50 years, reducing long-term maintenance and replacement costs. Moreover, their excellent thermal resistance and non-reactive nature make them suitable for diverse climates and soil conditions.
Specification of DWC Cable Duct Pipes 40 MM
| Property | Description |
|---|---|
| Product Name | DWC Cable Duct Pipes 40 MM |
| Outer Diameter (OD) | 40 mm |
| Inner Diameter (ID) | Approx. 32–34 mm |
| Standard Length | 30–50 meters coils (customizable) |
| Structure | Corrugated Outer Wall, Smooth Inner Wall |
| Material | High-Density Polyethylene (HDPE) |
| Jointing System | Snap-fit Coupler with EPDM Rubber Gasket |
| Color Options | Orange (Standard for Electrical) / Black (General Use) |
| Compliance Standards | IS 14930 Part II, IEC 61386 |
| Applications | Electrical Cabling, Fiber Optic, Low-Voltage Ducting |
Chemical Composition of DWC Cable Duct Pipes 40 MM
| Component | Percentage (%) |
|---|---|
| Carbon (C) | ~85 – 87 |
| Hydrogen (H) | ~12 – 14 |
| Additives | <1 (UV stabilizers, antioxidants, black pigment) |
Mechanical Properties of DWC Cable Duct Pipes 40 MM
| Property | Value |
|---|---|
| Density | 0.941 – 0.965 g/cm³ |
| Tensile Strength | ≥ 26 MPa |
| Flexural Modulus | 800 – 1200 MPa |
| Elongation at Break | ≥ 500% |
| Ring Stiffness (SN Class) | SN4 |
| Crush Resistance | High |
| Flame Retardancy | Yes (As per IS 14930 Part II) |
| UV Resistance | Excellent |
| Operating Temperature | -40°C to +80°C |
| Service Life | 50+ years |
To further support infrastructure and utility projects, Synergy offers custom project consultation, on-site training, and technical support. Their expert engineering team collaborates with project managers and contractors to ensure that the 40 mm DWC cable duct pipes are installed with precision and efficiency. This customer-centric approach and commitment to quality have earned Synergy a strong reputation as a global supplier of DWC Cable Duct Pipes 40 MM.
