Dwc Pipes For Cable Encasing Manufacturer Stockist Exporter
We are manufacturers, stockist and exporters of Dwc Pipes For Cable Encasing in Mumbai.

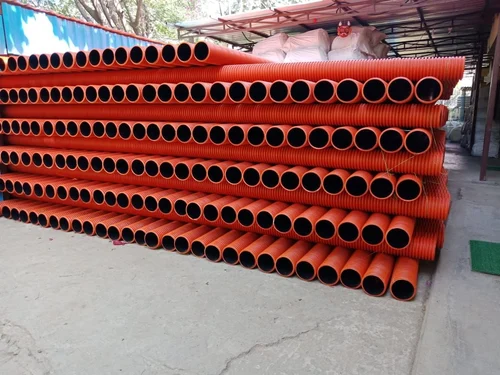

Synergy Engineering Solution is a leading manufacturer, stockist, and exporter of premium-grade DWC Pipes for Cable Encasing, designed for superior protection and routing of underground and surface-laid power and communication cables. Manufactured using High-Density Polyethylene (HDPE), these Double Wall Corrugated (DWC) Pipes offer high mechanical strength, chemical resistance, and a long service life, making them the ideal choice for infrastructure development, power distribution networks, telecom lines, and fiber optic cabling.
The structure of DWC pipes consists of a corrugated outer wall that provides rigidity and high crush resistance, and a smooth inner wall that ensures easy cable pulling and reduces friction. This dual-wall construction makes DWC pipes not only strong but also lightweight and easy to install. Synergy’s DWC pipes for cable encasing are manufactured using co-extrusion technology and are available in various sizes ranging from OD 40 mm to OD 315 mm, depending on cable size and site requirements.
These pipes conform to industry specifications such as IS 14930 Part II, IEC 61386, and EN 50086, and are widely used in smart cities, data centers, industrial plants, transportation systems, and other sectors where durable and secure cable protection is essential. Pipes are typically supplied in 6-meter lengths or 30–100 meter coils, based on size. Snap-fit couplers and EPDM rubber gaskets are used to ensure secure, leak-proof joints during underground or embedded installations.
As a reliable stockist, Synergy maintains a large inventory of DWC pipes and related accessories, including bends, reducers, junction boxes, and end caps, ensuring fast delivery for time-sensitive infrastructure projects. All products undergo rigorous testing for ring stiffness, compression resistance, UV stability, and flame retardancy before dispatch. Their non-conductive and flame-resistant characteristics add a safety advantage when used around high-voltage cables or congested service ducts.
Our Other Valuable Products
Synergy Engineering Solution exports its DWC Pipes for Cable Encasing to countries like Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, the USA, Canada, and throughout Africa. With robust global logistics support, the company offers customized export packaging, third-party inspections, Material Test Certificates (MTCs), and project-specific labeling to meet international standards and compliance.
The HDPE material used in DWC pipes offers superior chemical resistance, making the pipes suitable for use in aggressive soil or polluted environments. Their high tensile strength and resistance to abrasion, UV rays, and pressure allow them to last over 50 years in service with minimal maintenance. These properties, combined with their cost-effectiveness, make them a preferred alternative to PVC or concrete ducting systems.
Specification of Dwc Pipes For Cable Encasing
| Property | Description |
|---|---|
| Product Name | Dwc Pipes For Cable Encasing |
| Diameter Range | 100 mm to 1500 mm (4" to 60") |
| Standard Length | 6 meters, 12 meters |
| Wall Construction | Smooth Inner Wall, Corrugated Outer Wall |
| Material | High-Density Polyethylene (HDPE) |
| Standards | AASHTO M252/M294 Type S, ASTM D3212, ASTM F2306 |
| Jointing Method | Bell-and-Spigot with Gasketed Seal |
| Manning's Coefficient | 0.012 |
| Applications | Drainage, Culverts, Highway Runoff, Agricultural and Stormwater |
Chemical Composition of Dwc Pipes For Cable Encasing
| Component | Percentage (%) |
|---|---|
| Carbon (C) | ~85 – 87 |
| Hydrogen (H) | ~12 – 14 |
| Additives | <1 (UV stabilizers, antioxidants, black pigment) |
Mechanical Properties of Dwc Pipes For Cable Encasing
| Property | Value |
|---|---|
| Density | 0.941 – 0.965 g/cm³ |
| Tensile Strength | ≥ 26 MPa |
| Flexural Modulus | 800 – 1200 MPa |
| Elongation at Break | ≥ 500% |
| Ring Stiffness (SN Class) | SN4, SN8 |
| Impact Resistance | High |
| Crush Resistance | Excellent |
| UV Resistance | Excellent |
| Flame Retardancy | Yes (as per IS 14930) |
| Operating Temperature | -40°C to +80°C |
| Expected Service Life | 50+ years |
To meet evolving project demands, Synergy provides technical assistance, custom product design, and on-site support during installation. Their commitment to product quality, client satisfaction, and timely delivery has made them one of the most sought-after global suppliers of DWC Pipes for Cable Encasing in major government, telecom, and private sector infrastructure projects.
