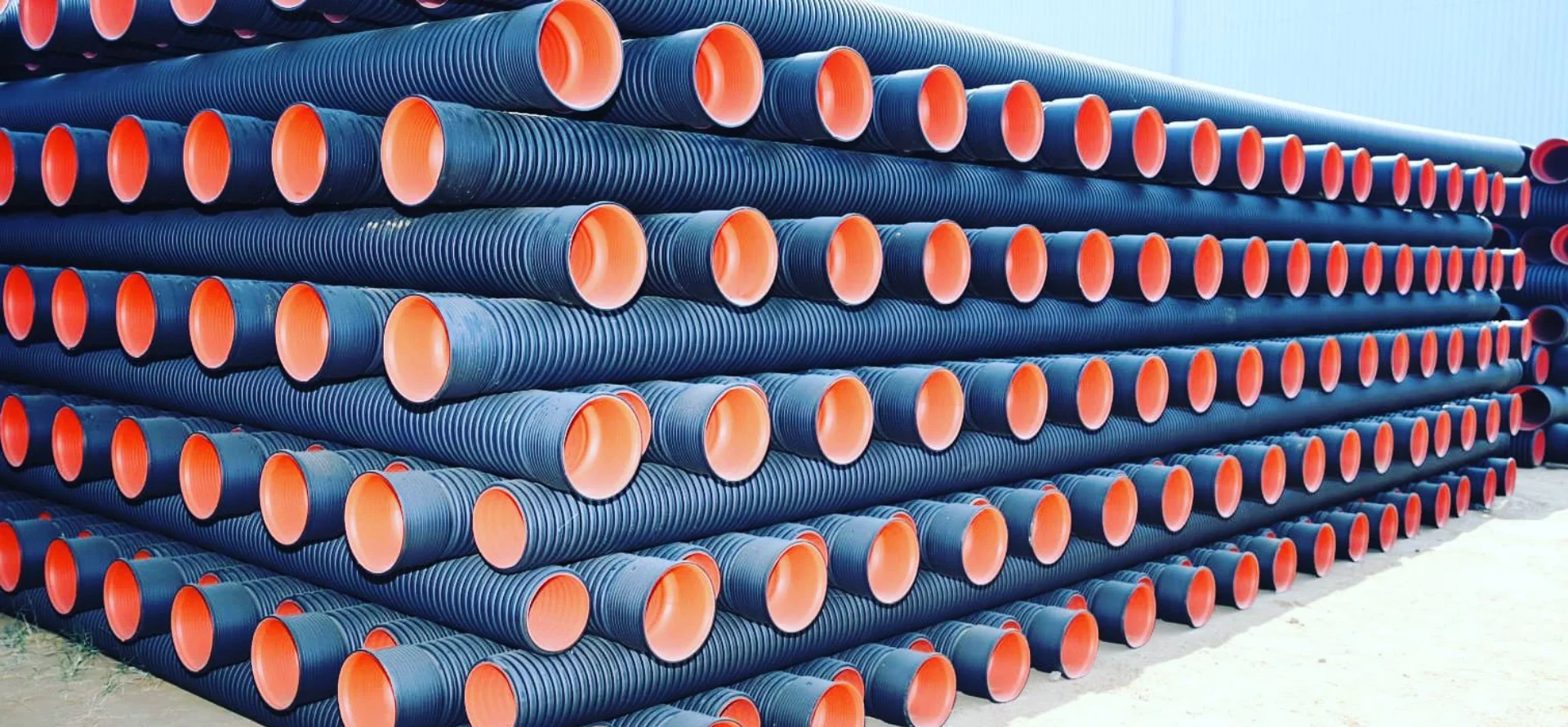

HDPE DWC Drain Pipe Manufacturer Stockist Exporter
We are manufacturers, stockist and exporters of HDPE DWC Drain Pipe in Mumbai.
Synergy Engineering Solution is a leading manufacturer, stockist, and exporter of premium-quality HDPE DWC Drain Pipes that are specially designed for efficient and long-lasting underground drainage systems. These pipes are manufactured using High-Density Polyethylene (HDPE) and are constructed with a double wall corrugated (DWC) structure, combining strength, durability, and smooth internal flow efficiency. The corrugated outer wall provides superior load-bearing capability, while the smooth inner layer ensures minimal flow resistance, making these pipes ideal for all types of non-pressure drainage applications.
The HDPE DWC Drain Pipe is widely used in municipal stormwater networks, rainwater harvesting systems, highway and road drainage, and rural water management projects. Thanks to their high ring stiffness, these pipes can be buried under deep soil or heavy traffic loads without deformation or collapse. The excellent hydraulic characteristics and abrasion resistance make these pipes suitable for handling both stormwater and treated/untreated effluents in industrial and domestic projects.
Manufactured using advanced co-extrusion technology, Synergy ensures that each pipe meets the highest quality standards, conforming to IS 16098 (Part 2), IS 14930, DIN 16961, and EN 13476 norms. The pipes are typically supplied in 6-meter lengths and can be quickly joined using push-fit couplers and EPDM rubber gaskets, providing a watertight, durable seal. This easy jointing system reduces installation time and cost, especially in large infrastructure and highway drainage projects.
As a dedicated stockist, Synergy maintains a wide inventory of HDPE DWC Drain Pipes in multiple diameters, ranging from small bore (OD 40 mm) to large bore (ID 600 mm+), with various ring stiffness classes (SN4/SN8) to meet different installation requirements. These pipes are usually available in black with blue or yellow inner walls, enabling quick visual inspection and compliance with color coding standards used in drainage systems.
Our Other Valuable Products
With a strong export network, Synergy Engineering Solution supplies HDPE DWC Drain Pipes to global markets including Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, the USA, Canada, and across Africa. The company provides custom export packaging, technical datasheets, material test certificates (MTCs), and logistics support, making them a reliable partner for international infrastructure projects and contractors.
The choice of HDPE as the base material ensures the pipe's resistance to corrosion, chemicals, and biological attacks, making them more durable than traditional concrete or metal drainage pipes. These pipes also have a high tolerance to thermal cycling, allowing them to perform well across a wide range of temperatures from -40°C to +80°C, and have a life expectancy of over 50 years, reducing the need for frequent maintenance or replacements.
Specification of HDPE DWC Drain Pipe
| Property | Description |
|---|---|
| Product Name | HDPE DWC Drain Pipe |
| Diameter Range | OD 40 mm to ID 600 mm+ |
| Standard Length | 6 meters (other lengths available) |
| Material | High-Density Polyethylene (HDPE) |
| Wall Structure | Corrugated Outer Wall, Smooth Inner Wall |
| Ring Stiffness Classes | SN4, SN8 |
| Jointing Method | Push-fit with EPDM Rubber Gasket |
| Compliance Standards | IS 16098-2, IS 14930, DIN 16961, EN 13476 |
| Applications | Drainage, Sewer, Rainwater, Stormwater, Infrastructure |
Chemical Composition of HDPE DWC Drain Pipe
| Component | Percentage (%) |
|---|---|
| Carbon (C) | ~85 – 87 |
| Hydrogen (H) | ~12 – 14 |
| Additives | <1 (UV stabilizers, antioxidants, black pigment) |
Mechanical Properties of HDPE DWC Drain Pipe
| Property | Value |
|---|---|
| Density | 0.941 – 0.965 g/cm³ |
| Tensile Strength | ≥ 26 MPa |
| Flexural Modulus | 800 – 1200 MPa |
| Elongation at Break | ≥ 500% |
| Ring Stiffness (SN Rating) | SN4, SN8 |
| Impact Resistance | High |
| Thermal Operating Range | -40°C to +80°C |
| UV Resistance | Excellent (Carbon Black Stabilized) |
| Life Expectancy | 50+ years |
Synergy offers custom project solutions, on-site training, and consultation services to EPC contractors, municipal bodies, and infrastructure developers. Their commitment to quality, timely delivery, and global logistics capabilities has made Synergy a trusted name in the global market for HDPE DWC Drain Pipes.
Pipe Testing Methods
Pipe Applications
