HERRINGBONE PULLEY LAGGING Manufacturer Stockist Exporter
HERRINGBONE PULLEY LAGGING Manufacturer Stockist Exporter

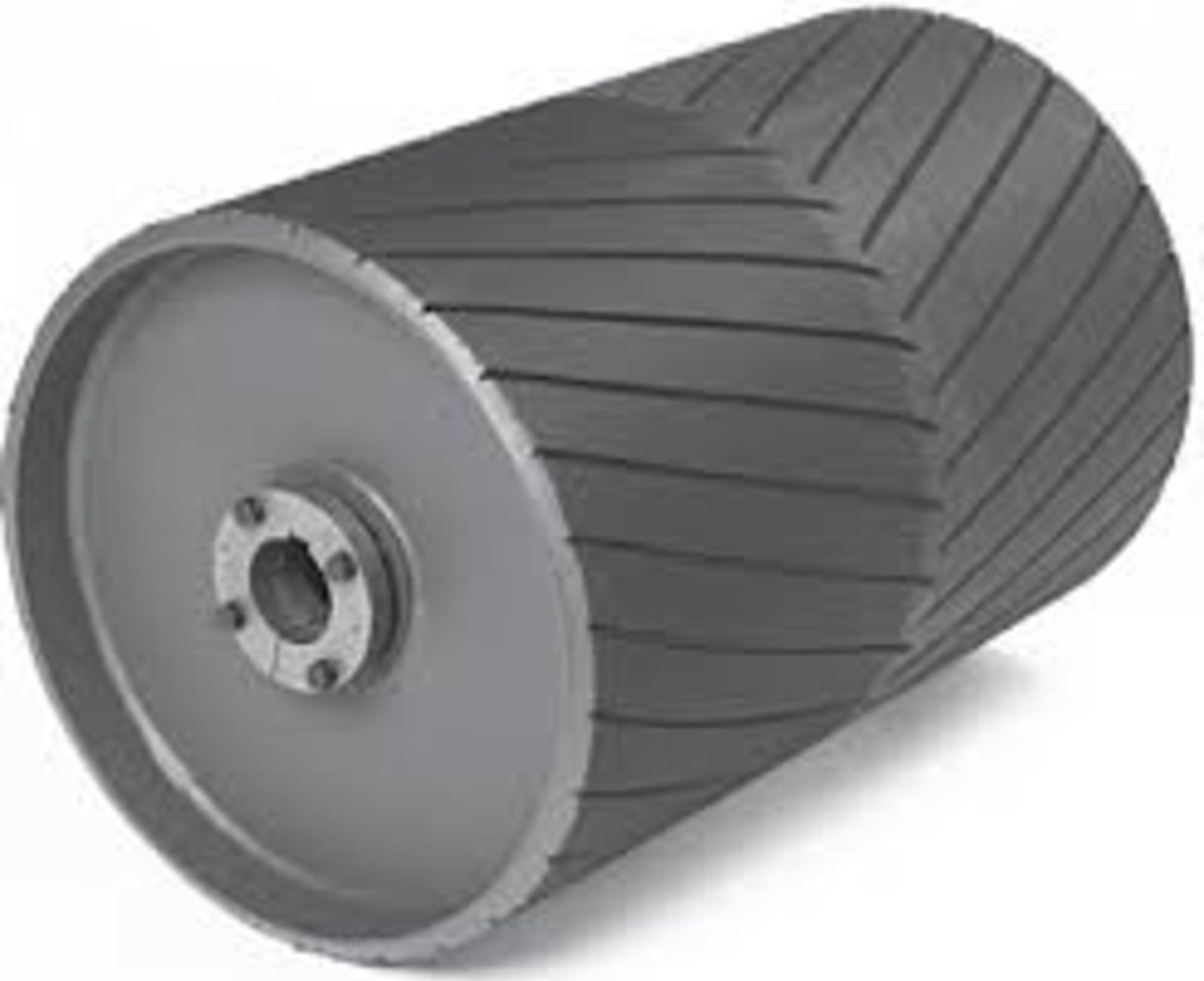

HERRINGBONE PULLEY LAGGING is a specialized rubber lagging solution engineered to improve traction between the conveyor belt and pulley surface. The distinctive V-shaped groove pattern provides superior grip under heavy load conditions. It is especially effective in wet, dusty, and muddy operating environments. The lagging prevents belt slippage during startup and continuous operation. Improved friction enhances power transmission efficiency. Reduced slip also lowers energy consumption. Conveyor performance becomes more stable and predictable. This makes it ideal for demanding industrial applications.
The herringbone groove design plays a crucial role in efficient water and debris dispersion. As the pulley rotates, moisture is pushed away through the angled channels. This eliminates hydroplaning and maintains consistent belt contact. Dust and fine particles are also expelled effectively. Clean contact areas improve traction reliability. The design ensures uninterrupted conveyor movement. Even in heavy rain or slurry conditions, performance remains consistent. This is a key advantage over plain rubber lagging.
Herringbone pulley lagging is manufactured using high-quality natural or synthetic rubber compounds. These materials are selected for excellent abrasion resistance and elasticity. The rubber compound withstands continuous friction and impact loading. It resists cuts, tears, and surface cracking. The lining maintains flexibility over a wide temperature range. This ensures long service life under harsh conditions. Aging and weathering resistance further enhance durability. Performance remains stable over time.
One of the primary benefits of herringbone pulley lagging is improved belt tracking. The angled groove pattern helps guide the belt centrally on the pulley. This minimizes side wandering and misalignment issues. Proper tracking reduces edge wear on conveyor belts. Spillage and material loss are also minimized. Conveyor safety is significantly improved. System downtime due to belt issues is reduced. Overall productivity increases.
Herringbone lagging is particularly suitable for high-torque conveyor applications. It allows efficient power transmission without requiring excessive belt tension. Lower belt tension reduces stress on bearings, shafts, and motors. Mechanical components experience less wear. This extends equipment life and reduces maintenance costs. Energy efficiency is improved due to reduced slippage. The conveyor operates more smoothly. System reliability increases substantially.
The installation of herringbone pulley lagging can be carried out using hot vulcanization or cold bonding methods. Proper surface preparation of the pulley shell ensures strong adhesion. The lagging thickness and groove depth are selected based on load and speed. Precision groove cutting ensures uniform performance across the pulley face. Correct installation is critical for long-term reliability. Quality checks are performed after bonding. This guarantees optimal operational performance.
Our Other Valuable Products
Herringbone pulley lagging is widely used in mining, cement, steel, fertilizer, and power generation industries. These sectors often operate in extreme environmental conditions. The lagging performs reliably in the presence of water, dust, and abrasive materials. Heavy material handling systems benefit greatly. Conveyor efficiency is maintained even under continuous operation. Equipment failures are significantly reduced. The solution is trusted across multiple industries.
Another major advantage is the reduction in belt and pulley wear. The rubber lagging acts as a cushioning layer between metal and belt. Impact loads during material transfer are absorbed effectively. Grooves distribute pressure evenly across the contact surface. This prevents localized wear and damage. Belt life is extended significantly. Replacement intervals are longer. Maintenance expenses are reduced.
Specification of HERRINGBONE PULLEY LAGGING
| Specification of Herringbone Pulley Lagging | ||
|---|---|---|
| Parameter | Unit | Specification |
| Lagging Material | — | Natural Rubber / Synthetic Rubber |
| Hardness | Shore A | 55 – 70 |
| Lagging Thickness | mm | 8 – 20 |
| Groove Pattern | — | Herringbone (V-Shaped) |
| Groove Depth | mm | 3 – 8 |
| Groove Angle | Degrees | 30° – 45° |
| Coefficient of Friction (Dry) | — | 0.75 – 0.90 |
| Coefficient of Friction (Wet) | — | 0.55 – 0.70 |
| Operating Temperature | °C | -20 to +80 |
| Abrasion Resistance (DIN) | mm³ | ≤ 120 |
| Bonding Method | — | Hot Vulcanization / Cold Bonding |
| Suitable Pulley Types | — | Drive, Tail, Bend & Snub Pulleys |
| Application Areas | — | Mining, Cement, Steel, Power & Fertilizer Plants |
Chemical Composition of HERRINGBONE PULLEY LAGGING
| Chemical Composition of Herringbone Pulley Lagging | ||
|---|---|---|
| Component | Symbol | Typical Composition (%) |
| Natural Rubber / Synthetic Rubber (Base Polymer) | NR / SBR | 40 – 55 |
| Carbon Black (Reinforcing Filler) | C | 20 – 30 |
| Zinc Oxide (Activator) | ZnO | 3 – 5 |
| Stearic Acid (Activator) | C18H36O2 | 1 – 2 |
| Sulfur (Vulcanizing Agent) | S | 1 – 3 |
| Processing Oils / Plasticizers | — | 5 – 10 |
| Accelerators & Antioxidants | — | 1 – 3 |
| Anti-Aging & Protective Additives | — | 1 – 2 |
Mechanical Properties of HERRINGBONE PULLEY LAGGING
| Mechanical Properties of Herringbone Pulley Lagging | ||
|---|---|---|
| Property | Unit | Typical Value |
| Hardness | Shore A | 55 – 70 |
| Tensile Strength | MPa | 12 – 20 |
| Elongation at Break | % | 350 – 550 |
| Tear Resistance | kN/m | 25 – 50 |
| Abrasion Resistance (DIN) | mm³ | ≤ 120 |
| Coefficient of Friction (Dry) | — | 0.75 – 0.90 |
| Coefficient of Friction (Wet) | — | 0.55 – 0.70 |
| Compression Set (70°C, 24 hrs) | % | ≤ 25 |
| Operating Temperature Range | °C | -20 to +80 |
| Adhesion Strength to Metal | N/mm | ≥ 5 |
| Impact Resistance | — | Excellent |
| Groove Wear Resistance | — | High |
Herringbone pulley lagging also helps in reducing noise and vibration levels in conveyor systems. The resilient rubber surface dampens operational vibrations. Noise generated during belt movement is minimized. Improved working conditions are achieved in industrial plants. Reduced vibration protects structural components. Conveyor stability is enhanced. Operators experience smoother system performance. Compliance with safety and environmental standards is improved.
