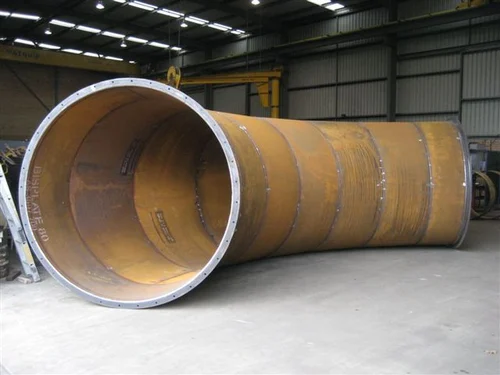

MSRL Ductings are specially engineered rubber lined steel ducting systems designed for handling highly corrosive and abrasive gases in demanding industrial environments. These ductings are widely used in chemical processing plants, fertilizer units, power stations, and metallurgical industries. The combination of carbon steel construction with a protective rubber lining ensures excellent structural strength and corrosion resistance. MSRL ductings are fabricated to meet stringent industrial standards and site-specific requirements. They provide a reliable solution for gas conveyance where conventional steel ducting may fail. Their robust design helps in maintaining operational safety and efficiency. MSRL ductings also reduce frequent maintenance requirements. This makes them a cost-effective long-term solution.
The primary advantage of MSRL ductings lies in their superior resistance to corrosive chemicals such as acids, alkalis, and chemical vapors. The internal rubber lining acts as a protective barrier, preventing direct contact between the steel surface and aggressive media. This lining significantly increases the service life of the ducting system. It also minimizes the risk of internal corrosion, leaks, and structural degradation. MSRL ductings perform efficiently even under fluctuating temperatures and pressure conditions. They are suitable for continuous operation in harsh industrial processes. The rubber lining is carefully selected based on the nature of the chemicals handled. This ensures optimal performance and durability.
MSRL ductings are manufactured using high-quality mild steel plates that provide excellent mechanical strength and dimensional stability. The fabrication process includes precision cutting, rolling, welding, and surface preparation to ensure uniform thickness and proper alignment. After fabrication, the internal surface is prepared for rubber lining through grit blasting or mechanical cleaning. This preparation enhances adhesion between the steel and rubber lining. The rubber lining is applied using proven bonding techniques to ensure a seamless and leak-proof finish. Each stage of manufacturing is closely monitored. Quality control checks are conducted to meet industrial standards. This results in highly reliable ducting systems.
These ductings are available in various shapes and configurations, including round, rectangular, and customized cross-sections. MSRL ductings can be designed to accommodate bends, reducers, expansion joints, and inspection ports as per plant layout. Custom fabrication allows easy integration with existing equipment and piping systems. The flexibility in design helps in optimizing airflow and reducing pressure losses. MSRL ductings are suitable for both horizontal and vertical installations. They can be supported using structural steel frameworks or hangers. Proper design ensures minimal vibration and noise during operation. This improves overall system performance.
MSRL ductings are extensively used in gas handling applications such as scrubber outlets, exhaust systems, fume extraction units, and chimney connections. They are particularly effective in environments where acidic fumes and corrosive gases are present. The rubber lining protects against erosion caused by particulate matter in gas streams. This makes them ideal for chemical reactors and absorption units. MSRL ductings help maintain clean and safe working conditions within industrial plants. They also support environmental compliance by ensuring controlled gas discharge. Their reliable performance enhances process efficiency. This contributes to uninterrupted plant operations.
One of the key benefits of MSRL ductings is their low maintenance requirement compared to conventional ducting systems. The rubber lining prevents scaling, rust formation, and metal loss over time. This reduces the need for frequent inspections and repairs. MSRL ductings are designed to withstand long-term exposure to aggressive operating conditions. Even in continuous service, they retain their structural integrity and lining adhesion. In case of maintenance, localized repairs can be carried out efficiently. This minimizes downtime and maintenance costs. The long service life improves overall return on investment.
Our Other Valuable Products
Installation of MSRL ductings is carried out with precision to ensure proper alignment and leak-proof joints. Flanged or welded connections are commonly used depending on system requirements. Rubber lined flanges are carefully matched to prevent damage to the lining during assembly. Proper handling during installation is essential to maintain lining integrity. Expansion allowances are incorporated to accommodate thermal movement. MSRL ductings can be easily integrated with blowers, scrubbers, and stacks. Correct installation enhances system reliability. It also ensures safe operation under varying pressure conditions.
MSRL ductings are designed to comply with relevant industrial and safety standards. Material selection, fabrication methods, and lining procedures follow established engineering practices. Each ducting section undergoes visual inspection and testing before dispatch. Spark testing and adhesion checks are often conducted on rubber lining. Dimensional accuracy is verified to ensure proper fit at site. Documentation and quality certificates are provided as required. These measures ensure consistent product quality. Compliance with standards builds confidence among end users. It also supports long-term operational safety.
Specification of MSRL Ductings
| Parameter | Specification |
|---|---|
| Product Name | MSRL (Mild Steel Rubber Lined) Ductings |
| Base Material | Mild Steel / Carbon Steel (IS 2062 / ASTM A36) |
| Lining Type | Natural Rubber / Synthetic Rubber (Acid & Alkali Resistant) |
| Rubber Lining Thickness | 3 mm to 10 mm (Customizable as per service conditions) |
| Duct Shape | Round, Rectangular, Square, Customized |
| Duct Size Range | 150 mm to 3000 mm Diameter or Equivalent Cross Section |
| Operating Temperature | -20°C to +90°C (Higher on request) |
| Operating Pressure | Atmospheric to ± 500 mm WC |
| Joint Type | Flanged / Welded / Bolted Connections |
| Flange Standard | IS / ANSI / DIN (As per requirement) |
| Surface Preparation | Grit Blasted / Mechanically Cleaned (SA 2.5) |
| Lining Bonding Method | Cold Bonding / Hot Vulcanized |
| Corrosion Resistance | Excellent resistance to acids, alkalis, and corrosive fumes |
| Applications | Chemical Plants, Fertilizer Units, Scrubbers, Exhaust Systems |
| Inspection & Testing | Visual Inspection, Spark Test, Adhesion Test |
| Standards Compliance | IS, ASTM, DIN, Client Technical Specifications |
| Finish | External Painted / Epoxy Coated |
Chemical Composition of MSRL Ductings
| Element | Composition (%) | Remarks |
|---|---|---|
| Carbon (C) | 0.15 – 0.25 | Provides strength and hardness to mild steel |
| Manganese (Mn) | 0.60 – 1.50 | Improves toughness and wear resistance |
| Silicon (Si) | 0.10 – 0.40 | Enhances strength and deoxidation |
| Sulphur (S) | ≤ 0.05 | Controlled to improve ductility and weldability |
| Phosphorus (P) | ≤ 0.05 | Limited to prevent brittleness |
| Iron (Fe) | Balance | Primary base metal of ducting structure |
Mechanical Properties of MSRL Ductings
| Property | Value | Remarks |
|---|---|---|
| Tensile Strength | 410 – 550 MPa | Ensures structural integrity under operating loads |
| Yield Strength | ≥ 250 MPa | Resistance to permanent deformation |
| Elongation | ≥ 20% | Indicates good ductility and formability |
| Hardness | 120 – 180 HB | Balanced hardness for fabrication and durability |
| Impact Strength | Good at ambient temperature | Resists sudden shock and vibration |
| Modulus of Elasticity | 200 GPa | Provides rigidity and dimensional stability |
| Fatigue Resistance | Moderate to High | Suitable for continuous gas flow applications |
| Rubber Lining Hardness | 45 – 65 Shore A | Absorbs abrasion and vibration |
| Adhesion Strength (Rubber to Steel) | > 6 N/mm | Ensures long-term lining integrity |
| Abrasion Resistance | Excellent | Protects against erosive gas and dust particles |
From an economic perspective, MSRL ductings offer significant cost advantages over alternative corrosion-resistant materials. While initial fabrication costs may be higher than plain steel ducting, the extended service life offsets the investment. Reduced maintenance, fewer replacements, and lower downtime result in long-term savings. MSRL ductings eliminate the need for frequent painting or coating. Their durability makes them suitable for critical process applications. Industries benefit from improved plant reliability. Operational disruptions are minimized. This enhances overall productivity and efficiency.
