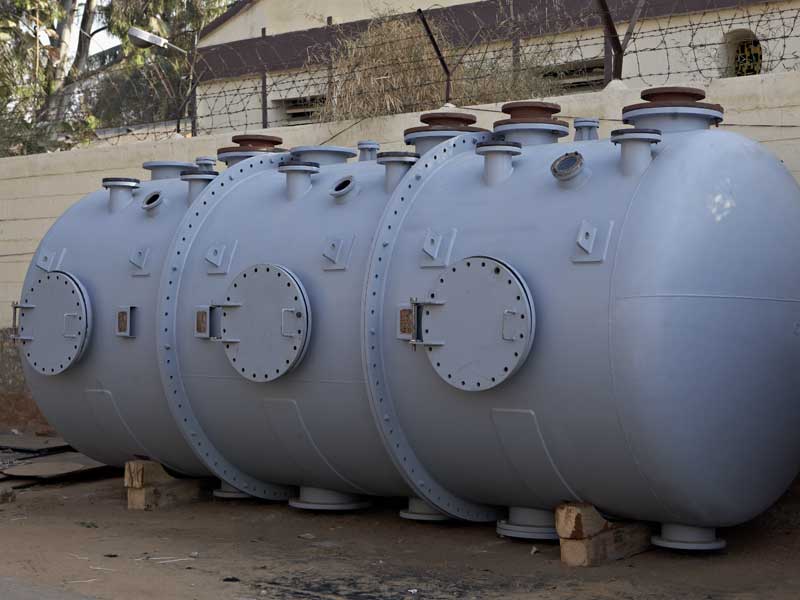

MSRL High Temperature Resistant Evaporators Assembled 2 are complete, ready-to-install thermal processing units designed for demanding industrial environments. These evaporators are fabricated using high-quality mild steel for superior structural strength. An internal high-temperature resistant rubber lining protects the metal surfaces from corrosive and aggressive media. The assembled design ensures faster installation at site. It reduces commissioning time and associated costs. These evaporators are suitable for continuous operation under elevated temperatures. They provide stable and reliable evaporation performance. The units are ideal for chemical and mineral processing industries. Overall, they deliver efficiency and durability in one integrated system.
The mild steel shell of the assembled evaporators provides excellent mechanical stability. It is designed to withstand thermal stress and process-related loads. Reinforcements are added at critical locations to prevent deformation. Mild steel allows precise fabrication and strong welded joints. All welds are carried out as per approved procedures. Non-destructive testing ensures weld integrity. External surfaces are protected with heat-resistant coatings. This improves resistance to atmospheric corrosion. The robust construction ensures long service life.
High-temperature resistant rubber lining is a key feature of these evaporators. The lining forms a protective barrier between process fluids and steel. It resists chemical attack even at elevated temperatures. The rubber compound retains flexibility and adhesion during thermal cycling. This reduces the risk of cracking or peeling. Proper surface preparation ensures strong bonding. Spark testing is performed to verify lining quality. Uniform lining thickness ensures consistent protection. This lining significantly enhances equipment reliability.
The assembled evaporators are engineered for high thermal efficiency. Internal configurations promote effective heat transfer. Uniform liquid distribution ensures consistent evaporation rates. The design minimizes fouling and scale formation. Smooth rubber lined surfaces aid in easy fluid flow. Pressure drop across the system is kept low. This helps in reducing energy consumption. Thermal losses are minimized through optional insulation. These features improve overall process efficiency.
MSRL High Temperature Resistant Evaporators Assembled 2 are suitable for a wide range of applications. They are used for concentration of chemical solutions. Mineral processing plants use them for recovery operations. They are effective in waste stream volume reduction. Pharmaceutical industries rely on them for controlled evaporation. The evaporators handle acidic and corrosive fluids safely. High temperature resistance ensures process stability. Custom configurations meet specific industry needs. This versatility makes them highly adaptable.
Safety is a major consideration in the design of these assembled evaporators. The strong shell reduces the risk of mechanical failure. Rubber lining minimizes corrosion-related leaks. Proper venting systems control internal pressure. Access manholes allow safe inspection and cleaning. The design supports safe startup and shutdown procedures. Instrumentation can be integrated for monitoring. This enhances operational control and safety. Worker exposure to hazards is minimized.
Our Other Valuable Products
The assembled configuration offers significant advantages during installation. Pre-assembled units reduce on-site fabrication work. This minimizes installation errors and delays. Alignment and fitment are ensured at the manufacturing stage. On-site manpower requirements are reduced. Commissioning becomes quicker and more efficient. The system integrates easily with existing piping. Electrical and instrumentation connections are simplified. This results in faster project completion.
Maintenance requirements of these evaporators are relatively low. Rubber lining protects against corrosion and erosion. Periodic inspection ensures early detection of wear. Cleaning is easy due to smooth internal surfaces. Repairs can be localized without replacing the entire unit. Downtime during maintenance is minimal. Spare parts are readily available. This improves plant uptime and productivity. Operating costs are significantly reduced.
Specification of MSRL High Temperature Resitant Evaporator assembled 2
| Parameter | Specification |
|---|---|
| Equipment Name | MSRL High Temperature Resistant Evaporator – Assembled 2 |
| Type | Fully Assembled Industrial Process Evaporator |
| Material of Construction | Mild Steel with High-Temperature Rubber Lining (MSRL) |
| Assembly Condition | Shop Assembled, Ready for Installation |
| Application | Chemical, Mineral, Pharmaceutical & Process Industries |
| Operating Temperature | Up to 120°C (Subject to Rubber Grade) |
| Operating Pressure | Atmospheric to Slight Positive Pressure |
| Heating Medium | Steam / Hot Water / Thermal Oil |
| Evaporation Capacity | As per Process Requirement (Customizable) |
| Rubber Lining Type | High-Temperature Resistant Rubber |
| Rubber Lining Thickness | 4 mm – 8 mm |
| Orientation | Vertical / Horizontal |
| Shell Thickness | As per Design & Thermal Calculations |
| External Coating | Heat Resistant Epoxy / Anti-Corrosive Paint |
| Insulation | Mineral Wool with Aluminum Cladding (Optional) |
| Accessories | Manhole, Nozzles, Vent, Drain, Supports |
| Testing & Inspection | Hydro Test, Spark Test, Dimensional Inspection |
Chemical Composition of MSRL High Temperature Resitant Evaporator assembled 2
| Component | Element / Compound | Typical Composition (%) |
|---|---|---|
| Mild Steel (Shell & Structural Components) | Carbon (C) | 0.18 – 0.25 |
| Manganese (Mn) | 0.60 – 1.50 | |
| Silicon (Si) | 0.10 – 0.40 | |
| Sulphur (S) | ≤ 0.040 | |
| Phosphorus (P) | ≤ 0.040 | |
| Iron (Fe) | Balance | |
| High Temperature Rubber Lining (Internal) | Natural / Synthetic Rubber Polymer | 55 – 70 |
| Carbon Black | 20 – 30 | |
| Heat Resistant Fillers | 5 – 10 | |
| Vulcanizing / Peroxide Curing Agents | 1 – 3 | |
| Accelerators & Processing Additives | 2 – 5 | |
| Antioxidants & Thermal Stabilizers | 1 – 3 | |
| Optional Internals / Accessories | Stainless Steel Inserts | Cr 16 – 18, Ni 8 – 10 |
| Polypropylene (PP) | 90 – 100 | |
| FRP Components | Glass Fiber 20 – 30, Resin 70 – 80 |
Mechanical Properties of MSRL High Temperature Resitant Evaporator assembled 2
| Component | Property | Typical Value |
|---|---|---|
| Mild Steel (Evaporator Body & Structural Frame) | Tensile Strength | 410 – 540 MPa |
| Yield Strength | 250 MPa (Minimum) | |
| Elongation | 20 – 25% | |
| Hardness | 120 – 170 HB | |
| Impact Resistance | Good under Thermal Cycling Conditions | |
| Modulus of Elasticity | 200 GPa | |
| High Temperature Rubber Lining (Internal Surface) | Tensile Strength | 8 – 15 MPa |
| Elongation at Break | 300 – 500% | |
| Hardness | 55 – 75 Shore A | |
| Tear Resistance | High | |
| Abrasion Resistance | Very Good | |
| Continuous Service Temperature | -10°C to +120°C | |
| Assembled Evaporator Performance | Structural Stability | Excellent |
| Thermal Fatigue Resistance | High | |
| Dimensional Stability | Very Good during Operation |
Maintenance requirements of these evaporators are relatively low. Rubber lining protects against corrosion and erosion. Periodic inspection ensures early detection of wear. Cleaning is easy due to smooth internal surfaces. Repairs can be localized without replacing the entire unit. Downtime during maintenance is minimal. Spare parts are readily available. This improves plant uptime and productivity. Operating costs are significantly reduced.
