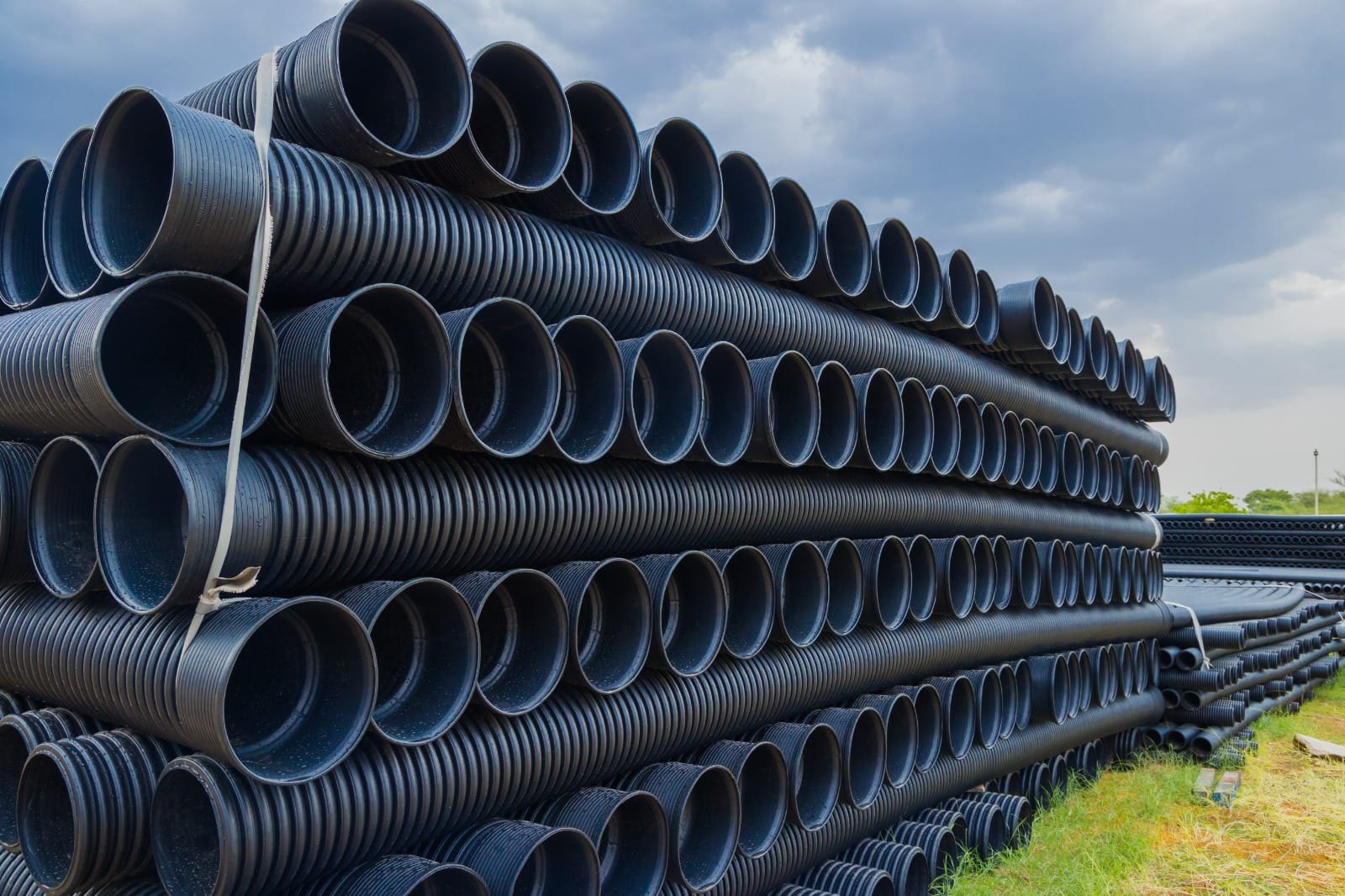

OD 315 mm DWC Pipe Electrical Manufacturer Stockist Exporter
We are manufacturers, stockist and exporters of OD 315 mm DWC Pipe Electrical in Mumbai.
Synergy Engineering Solution is a reputed manufacturer, stockist, and exporter of superior-quality OD 315 mm DWC Pipes (Double Wall Corrugated Pipes), specially designed for heavy-duty underground utilities and drainage infrastructure. Manufactured using High-Density Polyethylene (HDPE), these pipes feature a robust corrugated exterior for added mechanical strength and a smooth inner wall to ensure maximum flow efficiency. The OD 315 mm DWC Pipe is ideal for applications such as stormwater drainage, municipal sewer systems, culverts, and industrial cable ducting.
The outer diameter of 315 mm provides a large cross-sectional area, making these pipes suitable for high-volume fluid or cable conveyance. The double wall design—corrugated outside and smooth inside—not only gives the pipe excellent ring stiffness and resistance to external load but also ensures low friction for fluid or cable movement. This makes them highly effective in both gravity-based sewer systems and underground cabling routes.
Synergy Engineering Solution employs cutting-edge co-extrusion technology in the manufacturing of these pipes, ensuring dimensional accuracy, consistent wall thickness, and high durability. These pipes are manufactured in compliance with national and international standards such as IS 16098 (Part 2), IS 14930, DIN 16961, and EN 13476, ensuring their suitability for global infrastructure use. Typically supplied in 6-meter straight lengths, they are joined using push-fit couplers with EPDM rubber gaskets, providing a secure and leak-proof system even in demanding site conditions.
As a leading stockist, Synergy maintains ready stock of OD 315 mm DWC Pipes in standard colors like black or orange, with options for different ring stiffness classes like SN4 and SN8. The company also stocks a full range of accessories such as bends, junction boxes, end caps, and connectors, making it a one-stop solution provider for underground piping systems.
Our Other Valuable Products
As a global exporter, Synergy Engineering Solution delivers its products to various countries including Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, USA, Canada, and numerous nations across Africa and beyond. The company provides custom export packaging, logistical support, and documentation, including Material Test Certificates (MTCs), compliance certifications, and technical datasheets, making international procurement seamless and reliable.
The HDPE material used in these pipes is known for its excellent chemical resistance, corrosion resistance, and environmental friendliness. It is also UV stabilized, which means the pipes can be stored temporarily in open spaces without risk of degradation. Their expected service life exceeds 50 years, and they require minimal maintenance, making them a highly cost-effective solution for long-term infrastructure planning.
Specification of OD 315 mm DWC Pipe Electrical
| Property | Description |
|---|---|
| Product Name | OD 315 mm DWC Pipe |
| Outer Diameter (OD) | 315 mm |
| Inner Diameter (ID) | Approx. 270–285 mm |
| Standard Length | 6 meters (custom lengths available) |
| Material | High-Density Polyethylene (HDPE) |
| Wall Structure | Corrugated Outer Wall, Smooth Inner Wall |
| Ring Stiffness Class | SN4, SN8 |
| Jointing System | Push-fit Coupler with EPDM Rubber Gasket |
| Compliance Standards | IS 16098 (Part 2), IS 14930, DIN 16961, EN 13476 |
| Applications | Sewer, drainage, cable ducting, culverts, telecom, utilities |
Chemical Composition of OD 315 mm DWC Pipe Electrical
| Component | Percentage (%) |
|---|---|
| Carbon (C) | ~85 – 87 |
| Hydrogen (H) | ~12 – 14 |
| Additives | <1 (UV stabilizers, antioxidants, pigments) |
Mechanical Properties of OD 315 mm DWC Pipe Electrical
| Property | Value |
|---|---|
| Density | 0.941 – 0.965 g/cm³ |
| Tensile Strength | ≥ 26 MPa |
| Flexural Modulus | 800 – 1200 MPa |
| Elongation at Break | ≥ 500% |
| Ring Stiffness | SN4, SN8 |
| Impact Resistance | High |
| Operating Temperature Range | -40°C to +80°C |
| UV Resistance | Excellent (Carbon Black Stabilized) |
| Expected Service Life | 50+ years |
Synergy also offers customization services, including tailor-made pipe lengths, jointing solutions, and technical support for projects with specific engineering needs. Their vast manufacturing capabilities, commitment to quality, and extensive global supply network have positioned Synergy Engineering Solution as a leader in the international OD 315 mm DWC Pipe market.
