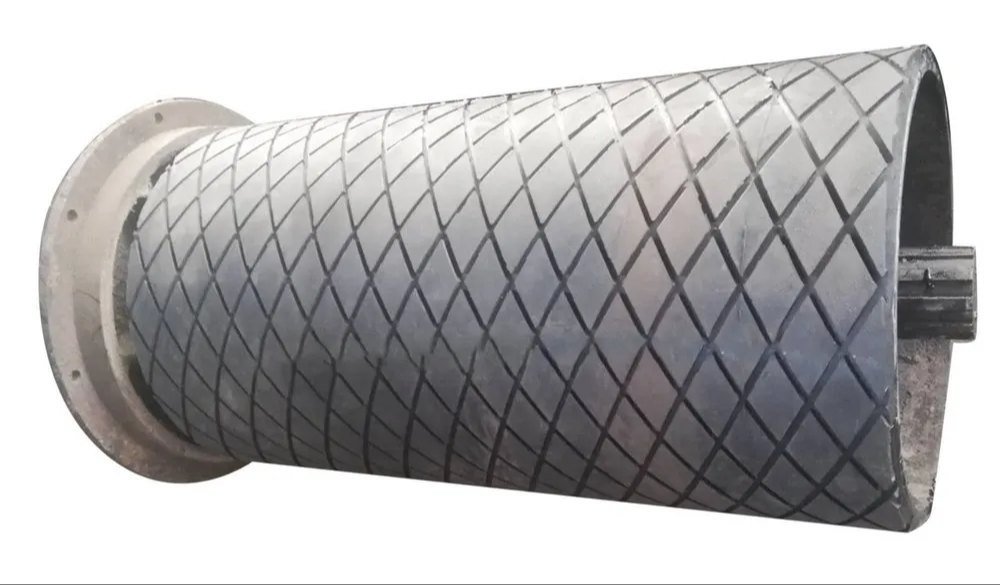

Rubber Lined Pulley with Diamond Groove Cutting is a critical component used in conveyor belt systems where high traction and reliable power transmission are required. The pulley is fabricated from high-quality steel and externally lined with durable rubber lagging. Diamond groove cutting on the rubber surface enhances grip between the belt and pulley. This design significantly reduces belt slippage during operation. It improves conveyor efficiency and belt life. The pulley performs reliably under heavy loads. It is ideal for continuous-duty applications. This makes it a preferred solution in material handling systems.
The diamond groove pattern plays an important role in improving frictional contact. The grooves are precisely cut in a crisscross diamond shape. This pattern increases the surface area in contact with the conveyor belt. It also allows dust, moisture, and debris to escape easily. As a result, the belt maintains consistent traction. This is especially beneficial in wet or dusty environments. The groove design prevents hydroplaning effects. It ensures stable belt movement. Overall system performance is improved.
Rubber lining used in the pulley is specially formulated to withstand abrasion and impact. High-grade natural or synthetic rubber compounds are selected based on application requirements. The rubber offers excellent resistance to wear and tear. It absorbs shock loads generated during belt start-up and stopping. This reduces stress on the belt and drive system. The elastic nature of rubber minimizes vibration. Noise levels during operation are also reduced. The pulley operates smoothly. This contributes to safer plant operations.
The steel core of the Rubber Lined Pulley with Diamond Groove Cutting provides high mechanical strength. It is designed to handle heavy belt tensions and radial loads. The pulley shell is manufactured with precision to ensure uniform thickness. Proper balance is maintained to avoid vibration at high speeds. Shaft and hub assemblies are engineered for long service life. The robust construction ensures dimensional stability. This prevents deformation during operation. The pulley performs consistently under demanding conditions.
These pulleys are widely used in industries such as mining, cement, power generation, steel plants, and bulk material handling. They are commonly installed as drive pulleys, tail pulleys, and bend pulleys. The diamond grooved rubber lining enhances performance in harsh operating environments. It supports conveyors handling coal, ores, limestone, and aggregates. The pulley performs well in outdoor installations. Exposure to moisture and dust does not affect grip. This versatility makes it suitable for diverse applications.
One of the major advantages of using diamond groove rubber lining is extended belt life. Improved traction reduces belt slippage, which minimizes heat generation. Lower heat reduces belt cover wear and degradation. Uniform grip prevents uneven belt stretching. This helps maintain proper belt alignment. Maintenance frequency is significantly reduced. Replacement costs are lowered over time. Conveyor downtime is minimized. Overall operating efficiency is improved.
Manufacturing of Rubber Lined Pulley with Diamond Groove Cutting involves strict quality control. The steel pulley is fabricated and machined to precise tolerances. Rubber lagging is bonded using hot or cold vulcanizing processes. The diamond grooves are cut accurately to uniform depth. Adhesion between rubber and steel is thoroughly tested. Dimensional checks ensure proper fitment. Dynamic balancing is carried out when required. These steps ensure reliable performance.
Installation of rubber lined pulleys is simple and compatible with standard conveyor designs. The pulley can be supplied with different shaft arrangements. It can be mounted using bearing housings as per system design. Proper alignment during installation ensures maximum service life. The diamond grooves help maintain belt tracking. Minimal adjustment is required after commissioning. The pulley operates efficiently from start-up. Maintenance access is easy. This supports smooth conveyor operation.
| Specification of Rubber Lined Pulley with Diamond Groove Cutting | |
|---|---|
| Product Name | Rubber Lined Pulley with Diamond Groove Cutting |
| Pulley Type | Drive Pulley / Tail Pulley / Bend Pulley |
| Base Material | Mild Steel / Carbon Steel |
| Rubber Lining Type | Natural Rubber / Synthetic Rubber |
| Lagging Pattern | Diamond Groove Cut |
| Rubber Hardness | 55 – 70 Shore A |
| Lagging Thickness | 8 mm to 20 mm (Customizable) |
| Pulley Diameter | 200 mm to 1600 mm (As per requirement) |
| Face Width | Up to 2000 mm (Custom sizes available) |
| Shaft Material | EN8 / EN19 / As specified |
| Operating Speed | Up to 5 m/s (depending on design) |
| Load Capacity | Heavy-duty conveyor applications |
| Operating Temperature | -20°C to 80°C |
| Application | Mining, cement, power plants, steel, bulk material handling |
| Testing | Adhesion test, dimensional check, balance test |
| Customization | Available as per customer drawing and conveyor design |
| Chemical Composition of Rubber Lined Pulley with Diamond Groove Cutting | ||
|---|---|---|
| Material | Element / Compound | Composition (%) |
| Pulley Shell (Mild Steel) | Carbon (C) | 0.15 – 0.25 |
| Manganese (Mn) | 0.60 – 1.00 | |
| Silicon (Si) | 0.10 – 0.35 | |
| Phosphorus (P) | ≤ 0.040 | |
| Sulphur (S) | ≤ 0.040 | |
| Iron (Fe) | Balance | |
| Rubber Lining (Lagging) | Natural / Synthetic Rubber Polymer | 45 – 65 |
| Carbon Black | 20 – 30 | |
| Processing Oils | 5 – 10 | |
| Zinc Oxide | 3 – 6 | |
| Sulphur (Curing Agent) | 1 – 3 | |
| Accelerators & Additives | Balance | |
| Mechanical Properties of Rubber Lined Pulley with Diamond Groove Cutting | ||
|---|---|---|
| Property | Unit | Typical Value |
| Rubber Hardness | Shore A | 55 – 70 |
| Tensile Strength | MPa | 12 – 20 |
| Elongation at Break | % | 350 – 550 |
| Tear Resistance | kN/m | 25 – 50 |
| Abrasion Resistance (DIN) | mm³ | ≤ 120 |
| Coefficient of Friction (Dry) | — | 0.75 – 0.90 |
| Coefficient of Friction (Wet) | — | 0.55 – 0.70 |
| Compression Set (70°C, 24 hrs) | % | ≤ 25 |
| Operating Temperature Range | °C | -20 to +80 |
| Groove Wear Resistance | — | High |
| Impact Resistance | — | Excellent |
| Adhesion Strength to Metal | N/mm | ≥ 5 |
From a maintenance perspective, Rubber Lined Pulley with Diamond Groove Cutting offers long-term benefits. The rubber lining protects the steel shell from corrosion and wear. Visual inspection of grooves helps identify wear patterns. If required, re-lagging can be performed without replacing the pulley. This extends equipment life. Spare inventory requirements are reduced. Maintenance costs remain low. The pulley remains reliable over extended periods.
