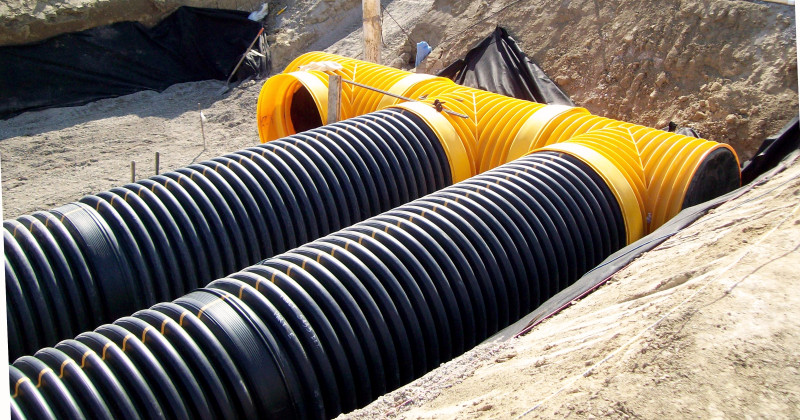

Underground Double Wall Corrugated Pipe Manufacturer Stockist Exporter
We are manufacturers, stockist and exporters of Underground Double Wall Corrugated Pipe in Mumbai.
Synergy Engineering Solution is a trusted manufacturer, stockist, and exporter of high-quality Underground Double Wall Corrugated Pipes, designed to meet the rigorous demands of modern infrastructure. These pipes are made from High-Density Polyethylene (HDPE) and feature a dual-layer structure with a corrugated exterior and smooth inner bore, ensuring both mechanical durability and hydraulic efficiency. Used widely in municipal sewage systems, road drainage, industrial discharge, and stormwater management, these pipes offer a highly reliable and cost-effective alternative to conventional concrete and metal piping solutions.
The corrugated outer wall provides excellent ring stiffness and compressive strength, protecting the pipe from external soil and load pressures, while the smooth internal wall allows for high flow rates and prevents sediment build-up. Synergy manufactures these pipes using state-of-the-art extrusion technology, ensuring consistent quality, uniform thickness, and long-term performance even in chemically aggressive environments. These pipes are resistant to rust, corrosion, and root penetration—key factors for their long service life underground.
Synergy’s Underground Double Wall Corrugated Pipes are available in diameters ranging from 100 mm to 1000 mm, in standard lengths of 6 meters and 12 meters. The pipes come with SN4, SN8, and SN16 ring stiffness ratings, complying with major global and Indian standards such as IS 16098 (Part 2), DIN 16961, and EN 13476. Equipped with push-fit joint systems using EPDM rubber gaskets, these pipes provide a leak-proof and secure installation, even in areas with dynamic soil settlement or heavy vehicular load.
As a well-equipped stockist, Synergy maintains a ready supply of various sizes, stiffness ratings, and accessories like couplers, bends, and chambers. These pipes are suitable for installation in diverse conditions including beneath highways, railway tracks, greenfield projects, and urban development zones. Their lightweight construction allows for easy handling, transport, and installation, significantly reducing overall project timelines and labor costs.
Our Other Valuable Products
As a global exporter, Synergy Engineering Solution supplies Underground Double Wall Corrugated Pipes to customers in Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, the USA, Canada, and multiple countries across Africa and other regions. The company ensures strict compliance with international quality standards and provides third-party inspection, material test certificates (MTCs), and export packaging suited for marine and inland shipping.
These HDPE-based underground pipes are also environmentally friendly and recyclable, adding a layer of sustainability to infrastructure projects. Their UV-resistant formulation, long service life of over 50 years, and minimal maintenance requirements make them ideal for government and private sector projects alike. The flexibility of HDPE allows installation along uneven terrain or in areas prone to seismic activity, ensuring performance without cracking or leaking.
Specification of Underground Double Wall Corrugated Pipe
| Property | Description |
|---|---|
| Product Name | Underground Double Wall Corrugated Pipe |
| Material | High-Density Polyethylene (HDPE) |
| Diameter Range | 100 mm to 1000 mm |
| Lengths | 6 meters, 12 meters, or customized |
| Ring Stiffness Classes | SN4, SN8, SN16 |
| Wall Type | Corrugated exterior with smooth interior |
| Jointing Mechanism | Push-fit with EPDM rubber sealing |
| Compliance Standards | IS 16098 (Part 2), DIN 16961, EN 13476 |
| Application Areas | Sewage, Drainage, Stormwater, Road Subsurface, Railway, etc. |
Chemical Composition of Underground Double Wall Corrugated Pipe
| Component | Percentage (%) |
|---|---|
| Carbon (C) | ~85 – 87 |
| Hydrogen (H) | ~12 – 14 |
| Additives/Stabilizers | <1 (UV stabilizers, antioxidants, colorants) |
Mechanical Properties of Underground Double Wall Corrugated Pipe
| Property | Value |
|---|---|
| Density | 0.941 – 0.965 g/cm³ |
| Tensile Strength | ≥ 26 MPa |
| Flexural Modulus | 800 – 1200 MPa |
| Elongation at Break | ≥ 500% |
| Ring Stiffness (SN Ratings) | SN4, SN8, SN16 |
| Impact Resistance | Excellent |
| UV Resistance | Excellent (Carbon Black Stabilized) |
| Temperature Resistance | -40°C to +80°C |
| Life Expectancy (Underground) | 50+ years |
Synergy also offers custom fabrication, cut-to-length options, on-site support, and technical consulting for large-scale projects involving underground piping networks. With its wide product range, fast logistics, and commitment to excellence, Synergy Engineering Solution stands out as a leading provider of Underground Double Wall Corrugated Pipe solutions across the globe.
